自動上料機+焊縫檢測

Auto feeding unit/welding seam detection

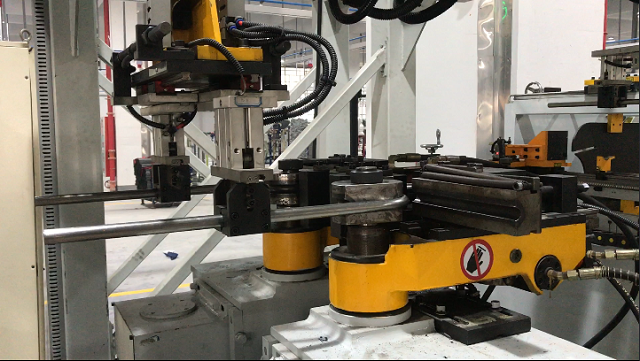

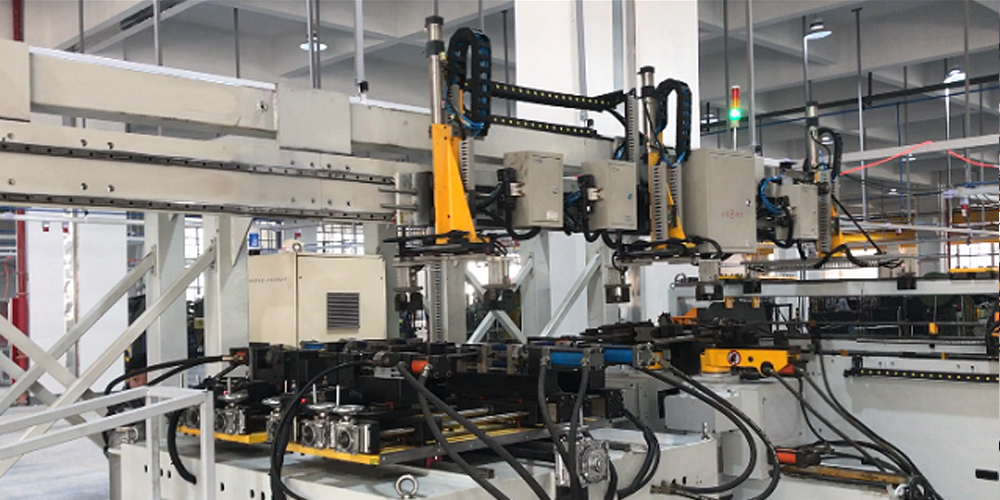

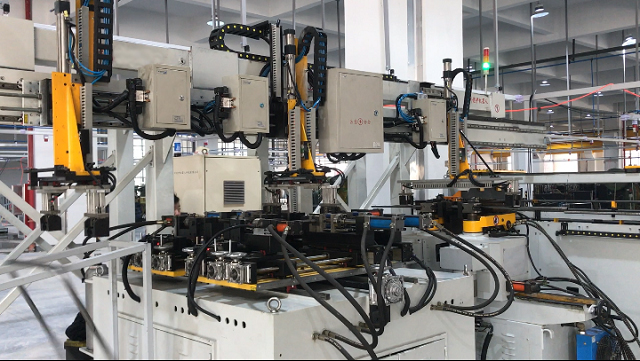

桁架機械臂給自動伺服雙彎機上料

Truss Arm feeds tube to servo bender

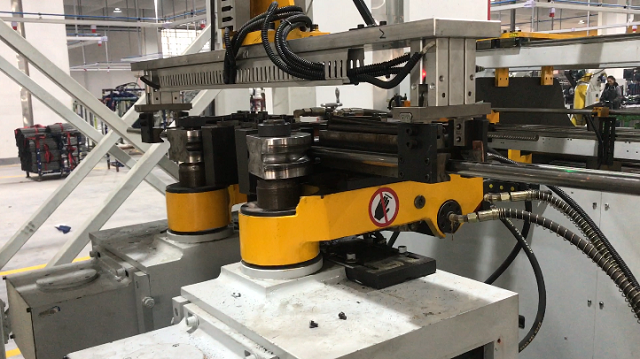

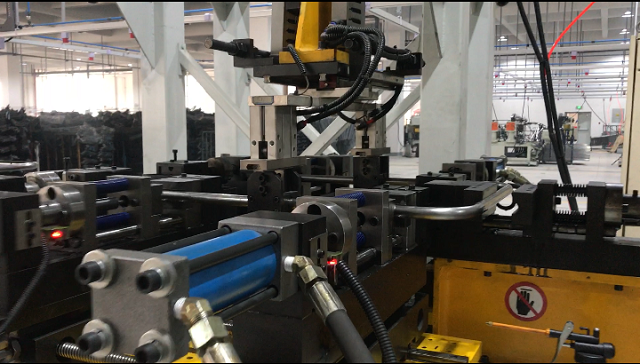

桁架機械臂給雙彎機下料

Truss Arm unload from the double bender

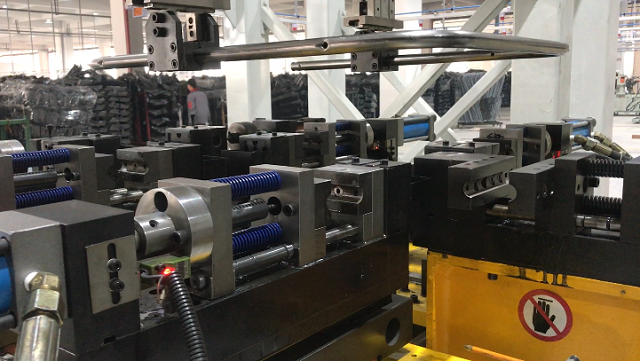

可調節孔位自動沖孔機

Punching Set with adjustable hole position

完成沖孔卸載

Complete punching unloading

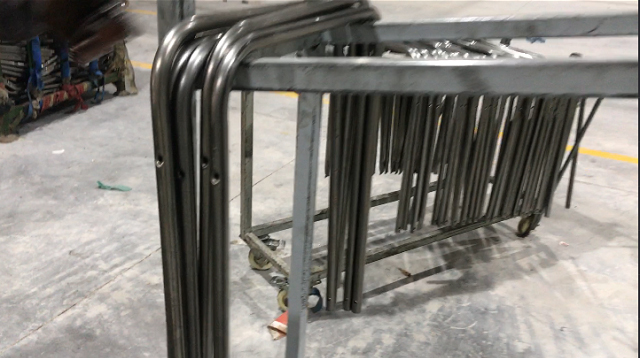

卸載產品管件到料架

Unload the product pipe to the rack

完成的管件 Finished product

U形管彎管機自動生產線主要特點：

1）節省人工顯著，全線只需要一個人工給自動生產線整捆批量上料，其它時間可以干其它事情

2）生產節拍快，效率高，操作簡單

3）適合管件范圍：800-2000mm管徑范圍：12-38mm

4）沖孔孔位在設計范圍內可調（可以非標定制尺寸）

5）伺服電機控制雙頭彎管機，精度高，沒有液壓系統溫度變化之誤差

6）數字屏幕操作，可保存至少50種加工參數

Main features of U-tube automatic production line:

1) Significant labor saving, the whole line only needs one person to load the automatic production line in batches, and other things can be done at other times

2) Fast production cycle, high efficiency and simple operation

3) Suitable pipe fitting range: 800-2000mm pipe diameter range: 12-38mm

4) The punching hole position can be adjusted within the design range (non-standard customized size)

5) The servo motor controls the elbows with high precision and no error of temperature changes in the hydraulic system

6) Digital screen operation, can save at least 50 kinds of processing parameters
